Description
Features:

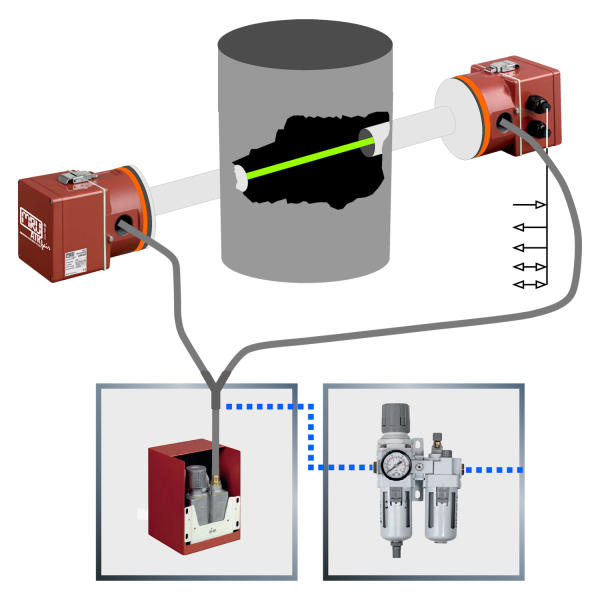

- Double pass opacity monitor
- Small and light-weight
- Low operating cost
- Minimal maintenance – no moving parts
- Long Life green LED
Benefits:
- Make your combustion process more cost-effective.
- Get the data to show your organization cares about the environment.
Applications:
Stack opacity, Stack dust monitoring, Emission opacity, baghouse dust monitor, Continuous Emission Monitoring, Flow / Dust, Gas Turbines / Compressor, Iron / Steel Industry, Power Plants, Refineries / Petrochem, simple
Measurement performance
| Parameter | Units | Min | Max | Comment |
| Path. length (flange to flange) | meters | 0.5 | 10 | flange-to-flange distance |
| Measuring range | | | | |
| Particulate | mg/m³ | 10.0 | 1000 | after on site calibration |
| Opacity | % | 0.0 | 100.0 | user selectable |
| Accuracy | % | –2 | +2 | |
| Resolution | mg/m³ | | 0.1 | display resolution |
| Damping | s | 1 | 60 | selectable |
| Drift with temperature | % | –2 | +2 | for any 20 °C change |
| Operating wave length | nm | 510 | 540 | green LED |
Power and air requirements
| Voltage | Vdc | | +24 | 90 … 240 Vac PSU available |
| Air supply volume | l /min | 50 | 200 | to each air purge inlet |
| Air supply fitting | | | | 1″ BSP threaded aperature |
Interface options
| RS 485 | | | | ModBus RTU |
| Analog outputs | mA | 4.0 | 20.0 | isolated and scalable |
| Relay contact | 3 A @ 30 Vdc | | | level alarm and service alarm |
Physical
| Protection class | | | IP 65 | for outdoor use |
| Operating temperature | °C | –20 | +55 | air temperature around the equipment |
| Gas temperature | °C | 100 | 600 | heat insulated gaskets included |
Dimensions
| Transceiver | 6.02” x 4.8” x 4.72” | 153 x 122 x 120 mm |
| Reflector | 6.02” x 4.8” x 4.72” | 153 x 122 x 120 mm |
| Purging air blower unit | 12.2” x 8.66” x 9.05” | 310 x 220 x 230 mm |
| Enclosure | | stainless steel, powder coated |
| Weight | transceiver: 5.5 lbs., reflector: 5.5 lbs. purging air blower unit: 24 lbs. | transceiver: 2,5 kg, reflector: 2,5 kg purging air blower unit: 11 kg |
