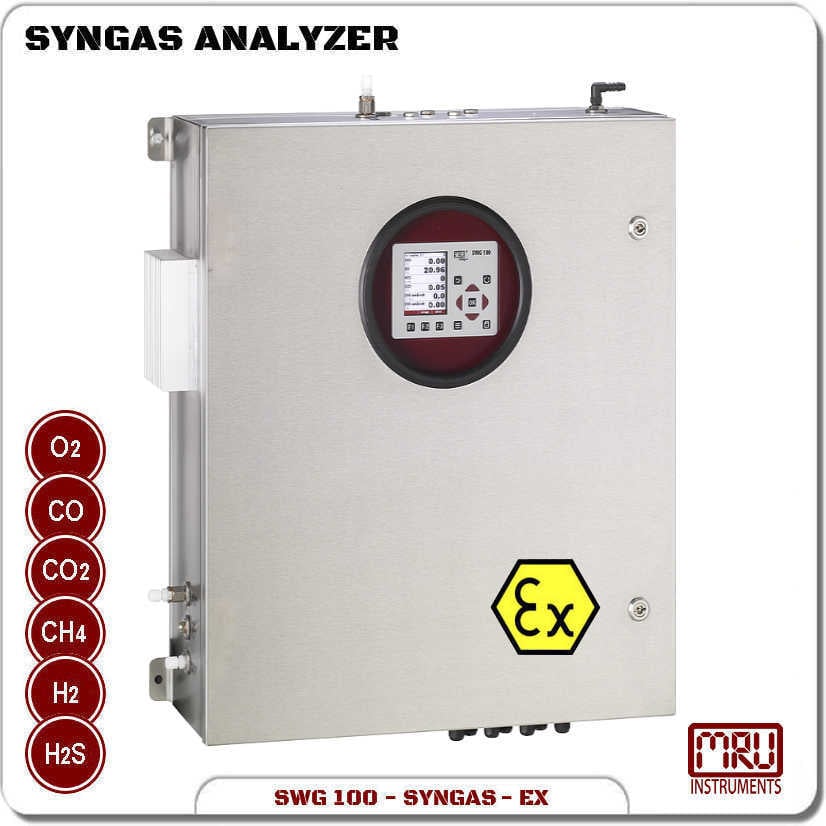

SWG 100 SYNGAS EX- Analyzer

Description

Features:

Designed for use in industrial safe or hazardous area Zone 2, or in areas with an increased safety levels
Can be installed in outdoor or indoor location
Can sample dry or wet syngas
Can sample pressurized or low pressure gas
Can be used from single or double sampling points.

Applications:

for use in industrial safe or hazardous area Zone 2, or in areas with an increased safety levels

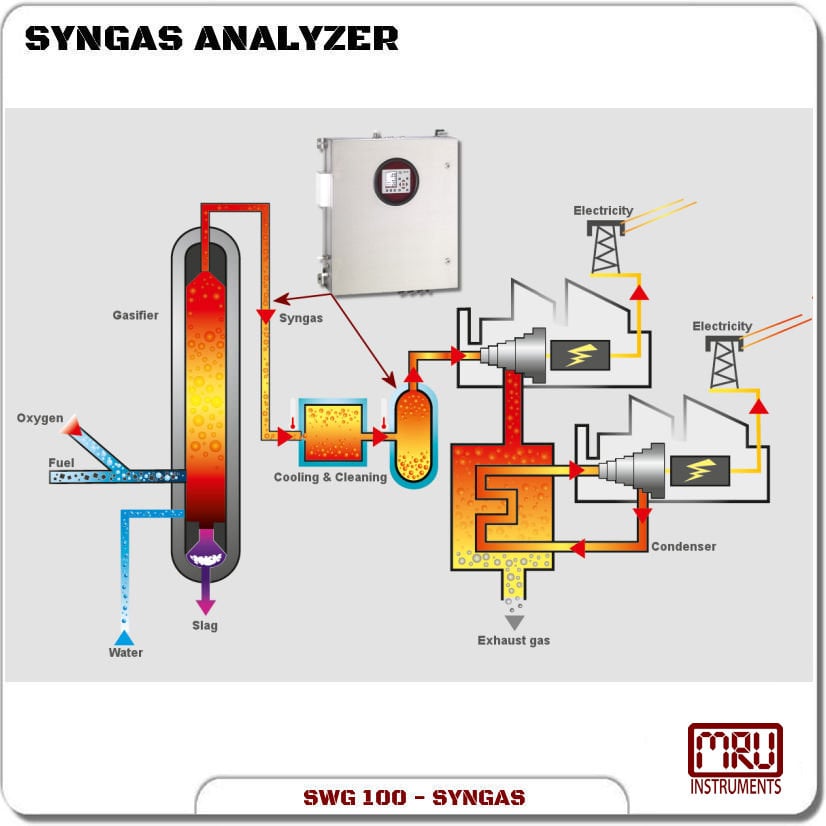

The stationary analyzer for continuous Syngas measurements in ZONE 2

for use in industrial safe or hazardous areas Zone 2, or in areas with an increased safety level.

The analyzer can be installed in outdoor or indoor locations, and it can sample dry or wet syngas, for high or low-pressure applications, low pressurized gas can be used for multiple sampling points.

For use in industrial safe or hazardous areas Zone 2, or in areas with an increased safety level
IP65 stainless steel cabinet, also for use outdoors with mandatory sun and rain protection

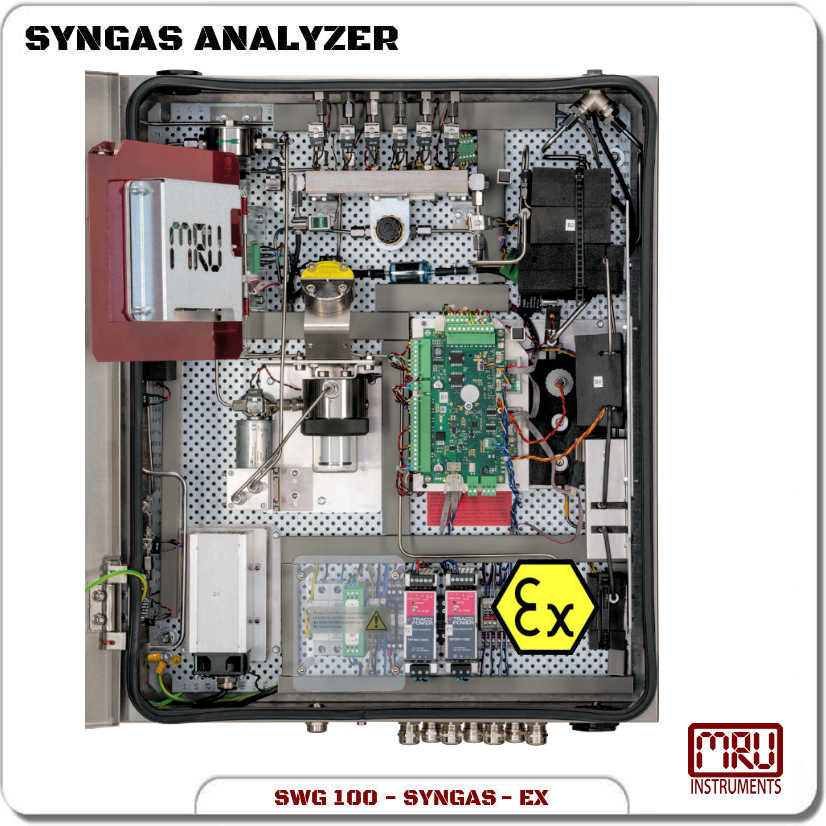

All stainless steel piping and fittings inside the analyzer
Accurate measurements, using NDIR and thermal conductivity technology
Sampling from low suction -100 mbar up to high pressure +200 mbar gas pipe
Direct measurement (no dilution) of moisture sample gas, with pressure and temperature compensation
Multiple sampling point monitoring (up to a total of 6 gas ports plus 1x calibration gas port) with one analyzer
Optionally, up to 3 sample gas ports can be additionally configured as calibration gas port
Flow restriction at the gas inlet for high-pressure systems with sample gas cut-off in case of system alarm (e.g. gas leakage)
Note: All sample gas inputs use the same process gas recirculation!
Industry-compatible rugged design, easy and fastest service design
Ready to run delivery, minimum installation work

OPTIONALLY

NDIR bench for CO-CO₂-CH₄ analysis
(using selective CH₄ measurement)
O₂ paramagnetic cell measurement
H₂S electrochemical cell measurement, H₂ immune
H₂ thermal conductivity detector measurement with cross-interference correction
RS485 to USB or Profibus or Ethernet converter
I/O modules with 4 channel 4–20 mA analog output and 2 alarm relays
Sample gas washing device, for tar-free sample gas
Different extraction probes are available, certified for ZONE 2
Different lengths of heated and temperature-regulated sampling lines

Measured components		Method	Range	Resolution	Accuracy
CO	Carbon Monoxide	NDIR	0 … 100%	0.01 Vol.-%	0.2 Vol-% or 2% reading or 0.1 % of reading after calibration
CO2	Carbon Dioxide	NDIR	0 … 100%	0.01 Vol.-%	0.2 Vol-% or 1% reading or 0.1 % of reading after calibration
CH4	Methane	NDIR	0 … 100%	0.01 Vol.-%	0.2 Vol-% or 1% reading or 0.1 % of reading after calibration
O2	Oxygen	Paramagnetic	0 … 25%	0.01 Vol.-%	0.1% absolute
H2S	Hydrogen Sulfide	Electro-chemical	0 … 2,000 / 5,000 ppm*	1 ppm	± 10 ppm / 5 % (0 … 500 ppm) / 10 % (> 500 ppm)
H2	Hydrogen	TCD	0 … 1.00 / 100%	0.1 %	0.5% or 2% reading**

Calculated values
N2	Nitrogen	Difference to 100%
	Calorific value	0 … 50 MJ/m³ or MJ/kg

General technical data
HMI (human machine interface)	3.5″ TFT color display Keyboard, password-protected operation 4 x analog output 4–20 mA, floating, max. load 500 R 4 x analog input 4–20 mA, passive inputs 2 alarm relays, potential free contacts 24 Vdc/5 A RS485 digital interface (Modbus RTU)
System safety components	Multi-stage monitored enclosure atmosphere Stainless steel flow restrictor orifice Sample gas shut-down solenoid valve Power supply cut-off in case of system alarm
Sample conditioning	Stainless steel gas fittings with 1/8″ ID threads Electric gas cooler (Peltier) with constant dew point +5° C Teflon particulate filter, internal Viton hosing Syngas condensate pump with ejector Monitored and regulated sample gas flow 60 l/h Sample gas inlet pressure: –100 mbar to + 200 mbar Sample gas venting: atmospheric pressure
Enclosure dimensions	27.55” x 23.61” x 8.26” (700 x 600 x 210mm) (H x W x D) for wall or rack mounting
Weight	143 lbs. (65 kg)
Protection class	IP65, stainless steel
Operating conditions	41 … 113 °F (+5 … +45 °C) or 14 … 113 °F (-10 … +45 °C) with cabinet heating
Cabinet conditioning	Cabinet heater 300 W
Power supply	Universal 90–240 Vac / 47–63 Hz / 200 W, 500 W with heater
Installation site	Indoor or outdoor (with sun/rain protection cover)
