Description
Features:
- Industrial combustion and emissions tuning, trouble-shooting or compliance reporting
- Simultaneous measurement up to 8 gases
- Automatic calculations and data logging
- Easy operation via intuitive, wireless Remote Control Unit
- Rugged design for extreme field conditions
- Accuracy and reliability
Benefits:
- Make your combustion process more cost-effective.
- Get the data to show your organization cares about the environment.
Applications:
C3H8, Cement Industry, CH4, CO, CO2 Calculated, CO2 Measured, Combustion Portable, CxHy, Gas Turbines / Compressor, Glass Industry, Installers / Boiler Manufacturers, Mobile Fluegas Analysis, NO, NO2, NOx, O2, Portable Emissions Analyzers, Portable Gas Analyzers, Power Plants, Refineries / Petrochem, simple, SO2, Universities / Laboratory
Built to do more…
Base unit:
- O2, CO, CO2, NO, NO2, CO-high, CO-very high, Stack temperature up to 2000°F, and Draft pressure to ±40”wc
- Emission calculations of mass flow, calculated or True NOx plus O2 referencing to user defined values
- Combustion calculations of CO2, CO/CO2 ratio, Excess air, Air ratio, Dewpoint, Efficiency, and Heat Losses
- Large condensate separator with PTFE coated filter
- High energy Li-Ion battery provides up to 20 hours of operation
- Built-in speed printer easy paper loading for quick on-site documentation
- Compact and rugged transport case
Options:
- Gas conditioning via high efficiency Peltier gas cooler
- CO protection with fresh air pump and cut-off valve
- Internal flow monitoring
- Auto zeroing
Basic Remote Control Unit:
- Bluetooth communication with Base Unit
- Large, color graphic display with ZOOM functions
- Simple, intuitive operation with customizable screens
- Durable, dirt resistant keypad
- 16,000 measurement internal data storage
- SD card reader for additional storage and easy data handling
- High energy Li-Ion battery provides up to 30 hours of operation
- Wireless battery charging via Base Unit cradle
- USB and Bluetooth interface
Additional features of the Comfort RCU:
- Integrated manometer for differential pressure and flow
- Two (2) thermocouple inputs for differential temperature
- Auxiliary (AUX) for optional humidity or gas leak probe
Software options:
- MRU Online View Software for real-time monitoring and reporting
- MRU 4 U Application for iOS and Android SMART devices
Warranty – 3 Years on the analyzer and accessories
(2 years on O2 sensor – 1 year on other gas sensors)
| NOVAplus – BASIC ANALYZER | QTY | Part No. | Unit Price | Discount | Total Price |
|---|

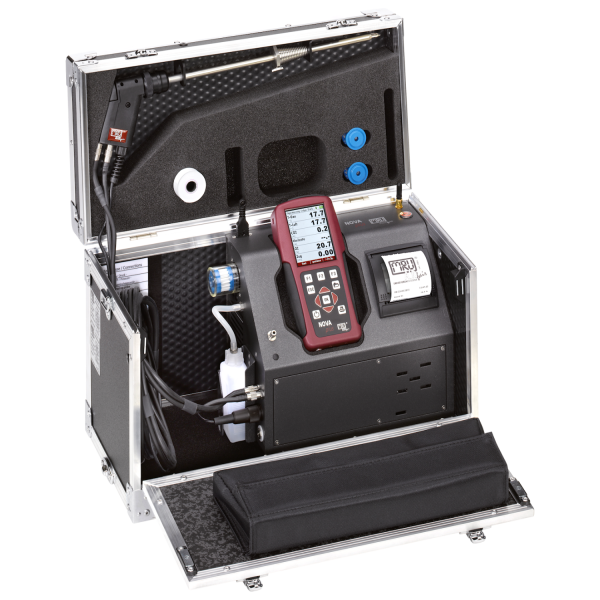

NOVA plus EMI – CASE: L 18.50″ x W 9″ x H 12″ (L 470 x W 220 x H 300mm)- O2 sensor 0 …25% – Long Life sensor 4 to 5 years life expectation
- CO/H2 compensated sensor (#65967) 0 – 10,000 ppm overload 20,000 ppm
- CO sensor protection using additional pump
- Calculated CO2 or optional NDIR measured CO2
- Gas temperature up to 1200°F using stainless steel / up to 2000°F using Inconel probe tubes
- Combuson air temperature: 32°F – 572°F (short plug for ambient air is included)
- Stack / Differenal pressure: +/- 40 inH2O (-100mbar … +100mbar)
- Differenal temperature measurement
- O2 referencing (normalizaon) to user definable value
- Emission calculaons like: mg/m3, with calculaon of NO(x) = 1,05*NO and NO(x) as mg/m3 NO2
- Complete combuson calculaon using large, country specific fuel type list
- Strong, high performance gas sampling pump for high sucon sampling
- Large condensate separator with PTFE (Teflon) coated PTFE filter OPTIONAL GAS COOLER
- Docking staon for remote control with wireless, inducve charging of remote control unit RCU
- Mini-USB interface to PC and SD-card slot for large volume data logging, incl. SD-card
- Internal data storage for up to 16,000 measurements!
- High energy Li-Ion baery, for up to 10 hrs. operaon me
- Wall-plug, universal grid power supply, 100-240Vac/50-60Hz / 12V dc
- Built-in speed printer with easy paper loading
- Robust metal enclosure mounted inside aluminum framed case
- DUAL Bluetooth module for wireless data transfer to PC/Notebook and
MRU4u App on Smartphones or Tablet (iOS and Android) - PC soware “MRU 4 WIN”, for data collecon, measurement report, address management (light version)
| 1 | 947010US | $6,299.00 | 0% | $6,299.00 |
| RCU – Remote Control Unit #63860 | BASIC – W I T H |
|---|
- Display of measured values via brilliant 3,5“ TFT high resoluon color display
- Storage and transmission of measured results via SD card or mini USB port
- Automac measurement incl. data logging funcon, user-definable
Determination of average value, storing on SD card and printing - Inducve charging via NOVA plus base staon or by means of mini USB cable
- High-capacity Li-Ion baery for approx. 30 hours operaon
|
| STORAGE AND TRANSPORTATION | QTY | Part No. | Unit Price | Discount | Total Price |
|---|
| Additional storage for LARGE aluminum transport case (will be mounted below the transport case) | 1 | 65513 | $167.00 | 0% | $167.00 |
| LARGE Case: L 18.50″ x W 8.66″ x H 4.72″ (L 470 x W 220 x H 120mm) | | | | | |
| Waterproof transport case | 1 | 999-CASE NP | $440.00 | 0% | $0.00 |
| RCU – Remote Control Unit | COMFORT – W I T H | QTY | Part No. | Unit Price | Discount | Total Price |
|---|
Wireless Remote Control „Comfort” Model for analyzer operationAs an alternative to the remote control “Basic” model Also usable as an independent temperature and pressure measuring device Functions as remote control basic model, but with the following additional features: - Integrated differenal pressure measurement 100 hPa, incl. sensor (manometer)
- Differenal temperature measurement, 2x type „K“ sockets (thermometer)
- Combuson air temperature measurement (alternavely to basic model)
- AUX socket to connect external sensors (e.g. HC sensor, humidity sensor)
- SD-Card (data logger funcon) (opon #63901)
UPGRADE PRICE FROM STD RCU # 63860 to COMFORT RCU # 63861 | 1 | 65177 | $523.00 | 0% | $523.00 |
| SENSORS – electro chemical – select up to 3 additional sensors | QTY | Part No. | Unit Price | Discount | Total Price |
|---|
| Sensor OPTION – CO Very High | 0 – 40,000 ppm | overload 100,000 ppm | 1 | 63992 | $1000.00 | 0% | $1000.00 |
| Sensor OPTION – NO | with calculated NOx | 0 – 1,000 ppm | overload 5,000 ppm | 1 | 63937 | $722.00 | 0% | $772.00 |
| Sensor OPTION – NO2 | For true NOx | 0 – 200 ppm | overload 1,000 ppm | 1 | 64111 | $982.00 | 0% | $982.00 |
| Sensor OPTION – SO2 | 0 – 2,000 ppm | overload 5,000 ppm | 1 | 63990 | $893.00 | 0% | $893.00 |
| Sensor OPTION – H2S | (with 0,1 ppm resolution) | 0 – 50 ppm | overload 200 ppm | 1 | 14302 | $982.00 | 0% | $881.00 |
| Sensor OPTION – H2S | 0 – 2,000 ppm | overload 5,000 ppm | 1 | 12258 | $982.00 | 0% | $982.00 |
| Sensor OPTION – H2S | 0 – 5,000 ppm | overload 10,000 ppm | 1 | 14305 | $1,051.00 | 0% | $1,051.00 |
| SENSOR-SOFTWARE OPTIONS | QTY | Part No. | Unit Price | Discount | Total Price |
|---|
| SOFTWARE OPTION – CO low | 0 – 500 ppm | with 0.1ppm resolution | 1 | 63993 | $232.00 | 0% | $232.00 |
| SOFTWARE OPTION – SO2low | requires Part #: 63990 SO2 Sensor | 0 – 300 ppm | with 0.1ppm resolution | 1 | 11413 | $232.00 | 0% | $232.00 |
| SOFTWARE OPTION – NO low | requires Part #: 63937 NO Sensor | 0 – 300 ppm | with 0.1ppm resolution | 1 | 63994 | $232.00 | 0% | $232.00 |
| SOFTWARE OPTION – NO2 low | requires Part #: 64111 NO2 Sensor | 0 – 100 ppm | with 0.1ppm resolution | 1 | 65647 | $232.00 | 0% | $232.00 |
PLEASE NOTE: THESE ARE NOT separate sensors; these are standard sensors used with special software options!
| INFRARED MODULES (NDIR) | QTY | Part No. | Unit Price | Discount | Total Price |
|---|
| NDIR-CO2 | single gas NDR | 0-40% | 1 | 64618 | $1074.00 | 0% | $232.00 |
| NDIR-CO2/CxHy | dual gas NDIR | 0-40% | / 100 – 40,000pm | 1 | 65648 | $1,844.00 | 0% | $1,844.00 |
| INFRARED MODULES (TRIPLE GAS NDIR) | QTY | Part No. | Unit Price | Discount | Total Price |
|---|
| NDIR Module | CO/CO2/CxHy as CH4 | 0…2000 ppm / 4.0% | 1 | 12720 | $3,151.00 | 0% | $3,151.00 |
| NDIR Module CO/CO2/CxHy as C3H8 0 … 2,000ppm / 10.0% 0 -40.0% 0 … 2,000 / 20,000 ppm | 1 | 12815 | $1,844.00 | 0% | $$3,151.00 |
| SOFTWARE OPTIONS | QTY | Part No. | Unit Price | Discount | Total Price |
|---|
MRU4win – “full” version software, for real time data acquisition and handling on PC with Windows 10 NOTE: Option #10538 Bluetooth for RCU is needed (operation via RCU) | 1 | 10539 | $261.00 | 0% | $261.00 |
Bluetooth Module “Low Energy”, Dual Mode for Android and IOS (without MRU Software) NOTE: This option is not retrofittable, it can not be installed inside RCU at a later date! | 1 | 12815 | $1,844.00 | 0% | $$3,151.00 |
| OPTIONS & ACCESSORIES BASE UNIT | QTY | Part No. | Unit Price | Discount | Total Price |
|---|
Low energy, high efficiency Peltier Gas Cooler with condensate pump (with condensate monitoring and alarm) | 1 | 63866 | $729.00 | 0% | $729.00 |
CO sensor protection using additional purging pump Recommended if CO/H2comp. #65967 is installed | 1 | 64013 | $128.00 | 0% | $128.00 |
Water stop incl.: Acrodisk replacement filter with O-ring NOTE: Only possible in combination with gas cooler! | 1 | 64013 | $177.00 | 0% | $177.00 |
CO sensor protection using additional purging pump and CO cut off valve Required if CO/H2comp. #65967 is installed together with one of the following options/modules: CO (high) #63938, CO (very high) #63992 and/or CO/NDIR #64011, CO/NDIR #64012 | 1 | 65718 | $463.00 | 0% | $463.00 |
Separate CO sensor protection by Purafil filter, recommended for use at CHP engines NOTE: not possible to retrofit at a later date! | 1 | 65028 | $131.00 | 0% | $131.00 |
Internal Sample Flow Monitoring to check internal filters, pump, hoses with indication in the display | 1 | 63903 | $278.00 | 0% | $278.00 |
Automatic zeroing of analyzer NOTE: not possible in combination with 65718 CO CUT OFF VALVE | 1 | 64198 | $450.00 | 0% | $450.00 |
| Active VENT port with forced sample gas ventilation via internal pump | 1 | 10172 | $396.00 | 0% | $396.00 |
Automatic Soot Measurement, including soot probe with heated probe handle, replaceable probe tube 11.81″ x 0.39″ (300 x Ø10 mm) and 8.86′ (2.7 m) sampling line (VITON) (including internal gas sample flow monitoring #63903) | 1 | 63897CH | $866.00 | 0% | $866.00 |
Automatic Soot Measurement, including soot probe with heated probe handle, replaceable probe tube 11.81″ x 0.39″ (300 x Ø10 mm) and 16.4′ (5.0 m) sampling line (VITON) (including internal gas sample flow monitoring #63903) | 1 | 64257CH | $901.00 | 0% | $901.00 |
| OPTIONS & ACCESSORIES | RCU COMFORT MODEL | QTY | Part No. | Unit Price | Discount | Total Price |
|---|
Detector Probe** with handle and 1,95 m cable (without sensor*) | 1 | 11182 | $232.00 | 0% | $232.00 |
| Sensor for CH4 leakage detection “HC400” | 1 | 11138 | $163.00 | 0% | $163.00 |
Sensor for stack moisture test “RM400” NOTE: ** to be connected to AUX socket of RCU “Comfort” Model | 1 | 11191 | $118.00 | 0% | $118.00 |
Measurement of gas flow velocity and mass emission calculation (using Pitot tube – select Pitot tube below) to be connected to RCU “Comfort” model Inclusive volume flow calculation (mash measurement) and integrated absolute pressure sensor Without Pitot tube (choose one below) (0.2 m/sec. up to 35 m/sec. | 1 | 11182 | $232.00 | 0% | $232.00 |
| PITOT TUBE L-TYPE WITHOUT TEMPERATURE MEASUREMENT | QTY | Part No. | Unit Price | Discount | Total Price |
|---|
| See additional price list if needed | | | | | |
| INDUSTRIAL PROBE HANDLE – Additional probe tube needed (different lengths available) | QTY | Part No. | Unit Price | Discount | Total Price |
|---|
| UNHEATED | | | | | |
| Sampling line and handle VITON – 9’ (2.7 m) | 1 | 63981 | $312.00 | 0% | $312.00 |
| Sampling line and handle VITON – 16’ (5.0 m) | 1 | 63982 | $362.00 | 0% | $362.00 |
| HEATED Industrial probe handle 266°F (+130°C) temperature regulated – 110 VOLT – 380W including glass wool filter | | | | | |
| 9′ HEATED sampling line – 110VAC | 1 | 66052-110V | $1,799.00 | 0% | $1,799.00 |
| 16′ HEATED sampling line – 110VAC | 1 | 66053-110V | $1,906.00 | 0% | $1,906.00 |
| 9′ HEATED sampling line – 220VAC | 1 | 66052 | $1,799.00 | 0% | $1,799.00 |
| 16′ HEATED sampling line – 220VAC | 1 | 66053 | $1,906.00 | 0% | $1,906.00 |
| Additional probe tube needed – see below | | | | | |
| EXCHANGEABLE PROBE TUBE FOR INDUSTRIAL PROBE HANDLE (Cone is included) | QTY | Part No. | Unit Price | Discount | Total Price |
|---|
| Exchangeable probe tube 12” x 0.3” (300 mm x 8 mm) High grade steel ≤ 1472°F (800°C) | 1 | 55583 | $136.00 | 0% | $136.00 |
| Exchangeable probe tube 20” x 0.3” (500 mm x 8 mm) High grade steel ≤ 1472°F (800°C) | 1 | 59292 | $377.00 | 0% | $377.00 |
| Exchangeable probe tube 20” x 0.4” (500 mm x 10 mm) High grade steel ≤ 1472°F (800°C) | 1 | 55806 | $482.00 | 0% | $482.00 |
| Exchangeable probe tube 30” x 0.4” (750 mm x 10 mm) High grade steel ≤ 1472°F (800°C) | 1 | 55672 | $354.00 | 0% | $354.00 |
| Exchangeable probe tube 40” x 0.4” (1000 mm x 10 mm) High grade steel ≤ 1472°F (800°C) | 1 | 55673 | $367.00 | 0% | $367.00 |
| Exchangeable probe tube 60” x 0.4” (1500 mm x 10 mm) High grade steel ≤ 1472°F (800°C) | 1 | 55674 | $546.00 | 0% | $546.00 |
| Exchangeable probe tube 80” x 0.4” (2000 mm x 10 mm) High grade steel ≤ 1472°F (800°C) | 1 | 55464 | $731.00 | 0% | $731.00 |
| EXCHANGEABLE PROBE TUBE FOR INDUSTRIAL PROBE HANDLE with Sintered Metal Filter | QTY | Part No. | Unit Price | Discount | Total Price |
|---|
| (without stack draft measurement) | | | | | |
| Exchangeable probe tube 30” x 0.4” with sintered metal filter High grade steel ≤ 932°F (500°C) | 1 | 60813 | $739.00 | 0% | $739.00 |
| Exchangeable probe tube 40” x 0.4” with sintered metal filter High grade steel ≤ 932°F (500°C) | 1 | 60814 | $839.00 | 0% | $839.00 |
| Exchangeable probe tube 30” x 0.4” (750 mm x 10 mm) High grade steel ≤ 1472°F (800°C) | 1 | 55672 | $354.00 | 0% | $354.00 |
| Exchangeable probe tube 40” x 0.4” (1000 mm x 10 mm) High grade steel ≤ 1472°F (800°C) | 1 | 55673 | $367.00 | 0% | $367.00 |
| Exchangeable probe tube 60” x 0.4” with sintered metal filter High grade steel ≤ 932°F (500°C) | 1 | 60815 | $987.00 | 0% | $987.00 |
| Sintered metal filter for probe tube, CrNi, 3μm for probe tubes 60813-60814-60815 | 1 | 56748 | $458.00 | 0% | $458.00 |
| EXCHANGEABLE PROBE TUBE FOR INDUSTRIAL PROBE HANDLE (Cone is included) | QTY | Part No. | Unit Price | Discount | Total Price |
|---|
| Exchangeable probe tube 20” x 0.3” (500 mm x 8 mm) Inconel ≤ 2000°F (1100°C) | 1 | 63927 | $1,157.00 | 0% | $1,157.00 |
| Exchangeable probe tube 30” x 0.4” (750 mm x 10 mm) Inconel ≤ 2000°F (1100°C) | 1 | 60626 | $608.00 | 0% | $608.00 |
| Exchangeable probe tube 40” x 0.4” (1000 mm x 10 mm) Inconel ≤ 2000°F (1100°C) | 1 | 56737 | $716.00 | 0% | $716.00 |
| Exchangeable probe tube 60” x 0.4” (1500 mm x 10 mm) Inconel ≤ 2000°F (1100°C) | 1 | 56738 | $1,295.00 | 0% | $1,295.00 |
| Industrial HEATED probe handle with 9′ UNHEATED sampling line | 1 | 64195 | $1,160.00 | 0% | $1,160.00 |
| Additional probe tube needed – see below | | | | | |
| EXCHANGEABLE PROBE TUBE FOR INDUSTRIAL PROBE HANDLE (Cone is included) | QTY | Part No. | Unit Price | Discount | Total Price |
|---|
| Exchangeable probe tube 12” x 0.5” (300 mm x 12 mm) High grade steel ≤ 1472°F (800°C) | 1 | 11620 | $382.00 | 0% | $382.00 |
| Exchangeable probe tube 20” x 0.5” (500 mm x 12 mm) High grade steel ≤ 1472°F (800°C) | 1 | 11640 | $451.00 | 0% | $451.00 |
| Exchangeable probe tube 30” x 0.5” (750 mm x 12 mm) High grade steel ≤ 1472°F (800°C) | 1 | 11621 | $647.00 | 0% | $647.00 |
| Exchangeable probe tube 40” x 0.5” (1000 mm x 12 mm) High grade steel ≤ 1472°F (800°C) | 1 | 11622 | $662.00 | 0% | $662.00 |
| Exchangeable probe tube 60” x 0.5” (1500 mm x 12 mm) High grade steel ≤ 1472°F (800°C) | 1 | 11623 | $739.00 | 0% | $739.00 |
| Exchangeable probe tube 80” x 0.5” (2000 mm x 12 mm) High grade steel ≤ 1472°F (800°C) | 1 | 11624 | $847.00 | 0% | $847.00 |
| EXCHANGEABLE PROBE TUBE FOR INDUSTRIAL PROBE HANDLE (Cone is included) | QTY | Part No. | Unit Price | Discount | Total Price |
|---|
| Exchangeable probe tube 20” x 0.5” (500 mm x 12 mm) Inconel ≤ 2000°F (1100°C) | 1 | 61827 | $1,448.00 | 0% | $1,448.00 |
| Exchangeable probe tube 30” x 0.5” (750 mm x 12 mm) Inconel ≤ 2000°F (1100°C) | 1 | 58076 | $1,475.00 | 0% | $1,475.00 |
| Exchangeable probe tube 40” x 0.5” (1000 mm x 12 mm) Inconel ≤ 2000°F (1100°C) | 1 | 59552 | $1,421.00 | 0% | $1,421.00 |
| Exchangeable probe tube 60” x 0.5” (1500 mm x 12 mm) Inconel ≤ 2000°F (1100°C) | 1 | 59904 | $2,856.00 | 0% | $2,856.00 |
| Exchangeable probe tube 80” x 0.5” (2000 mm x 12 mm) Inconel ≤ 2000°F (1100°C) | 1 | 59622 | $3,124.00 | 0% | $3,124.00 |
| HIGH TEMPERATURE PROBE WITH CERAMIC PROBE TUBE | QTY | Part No. | Unit Price | Discount | Total Price |
|---|
| High Temperature probe 40” x 0.4” (1000 mm x 10 mm) Ceramic ≤ 3000°F (1700°C) | 1 | 63320 | $1,817.00 | 0% | $1,817.00 |
| WITHOUT TEMPERATURE AND DRAFT MEASUREMENT! | | | | | |
| CONSUMABLES and OTHER ACCESSORIES | QTY | Part No. | Unit Price | Discount | Total Price |
|---|
| Combustion air temp. Probe 11.81″ with PTFE cone and 10′ cable | 1 | 61518 | $268.00 | 0% | $268.00 |
| Combustion air temp. Probe 7.87″ with PTFE cone and 10′ cable | 1 | 62928 | $190.00 | 0% | $190.00 |
| Additional SD card, 8GB (accredited for NOVA plus) | 1 | 62994 | $23.00 | 0% | $23.00 |
| Service kit (spare filter, fuses, probe cleaning brush, silicone, duster, etc.) | 1 | 63951 | $140.00 | 0% | $140.00 |
| Replaceable PTFE filter elements for condensate separator (washable and reusable up to 5 times) | 1 | 10155 | $18.00 | 0% | $18.00 |
| Pre-filter for high dust applications | 1 | 56356A | $35.00 | 0% | $35.00 |
| Filter tabs for pre-filter 56356A (1pack = 50pcs.) | 1 | 52798 | $36.00 | 0% | $36.00 |
| Printer paper, thermal paper, 58 mm x 20 m (1 pack. = 5 rolls) | 1 | 59465 | $18.00 | 0% | $18.00 |
| Stack draft probe 9.84″ x 0.31″ with 9.84′ sampling hose | 1 | 64409 | $259.00 | 0% | $259.00 |
Analyzer sets
| NOVAplus EMISSION – ANALYZER SET INCLUDING O2 / CO / NO / NO2 and CO2*1 | QTY | Part No. | Unit Price | Discount | Total Price |
|---|
NOVA plus # 94010US PLUS – BASIC RCU # 63860 and industrial probe # 63981 with 9′ sampling line and 12″ exchangeable probe tube # 55583 and CO measurement # 63988 (0…4,000ppm / 20,000ppm) and NO measurement # 63937 (0…1,000ppm / 5,000ppm) and NO2 measurement # 64111 (0…200ppm / 1,000ppm) NO and NO2 needed for true NOx CO protection # 64013 and MRU4win PC software # 10539 Peltier gas cooler # 63866 | 1 | 947010-02 | $9,180.00 | 0% | $9,180.00 |
| NOVAplus EMISSION – ANALYZER SET INCLUDING O2 / CO / NO / NO2 and CO2*1 | QTY | Part No. | Unit Price | Discount | Total Price |
|---|
NOVA plus # 94010US PLUS – BASIC RCU # 63860 and industrial probe # 63981 with 9′ sampling line and 12″ exchangeable probe tube # 55583 and CO measurement # 63988 (0…4,000ppm / 20,000ppm) and NO measurement # 63937 (0…1,000ppm / 5,000ppm) and NO2 measurement # 64111 (0…200ppm / 1,000ppm) NO and NO2 needed for true NOx and SO2 measurement # 63990 (0…2,000ppm / 5,000ppm) CO protection # 64013 and MRU4win PC software # 10539 Peltier gas cooler # 63866 | 1 | 947010-04 | $10,073.00 | 0% | $10,073.00 |
