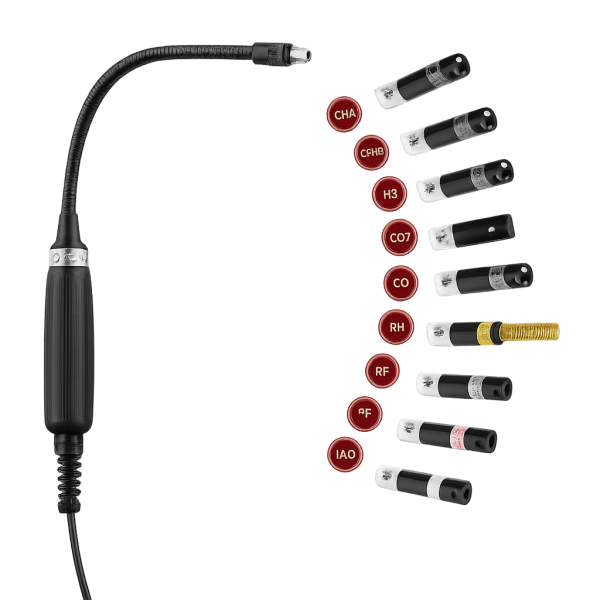

Gas Detector / Gas Sniffer Probe

Description

Features:

Multifunctional probe for gas leak detection
Reliable gas leak detection and stack moisture detection with just one system
The sensor can be introduced to areas with difficult access using the flexible sensor neck
Sensor can be changed during operation due to automatic identification by the device
Adaptable to all units with AUX-socket, such as these:
- DM 9600 / DM 9600 CHP
- AMPRO Plus / OPTIMA7 / NOVAcompact and NOVAplus

Benefits:

Applications:

C3H8, CH4, CO, CO2 measured, gas detectors, H2, boiler installers, boiler manufacturers, simple

HC-Probe for leak detection (all flammable gases), adaptable to all units with AUX-socket, e.g.

DM 9600 / DM 9600 CHP / AMPRO 2000, OPTIMA7, NOVAcompact, NOVAplus

Optical alarm at the sensor and on the display of the device
Acoustic alarm by the device
Adjustable alarm thresholds
Indication of measuring results in ppm or %LEL
6′ (2,0m) cable and flexible gooseneck
Calibration factors stored in the sensor, thus same sensor useable with different devices
Easiest handling: Sensor change during operation possible

	Range	Resolution	Reaction time
LEAK DETECTION
CH4 Sensor	0 – 44,000 ppm	1 ppm	< 5 sec.
C3H8 Sensor	0 – 17,000 ppm	1 ppm	< 5 sec.
H2 Sensor	0 – 40,000 ppm	1 ppm	< 5 sec.

STACK MOISTURE DETECTION
RM Sensor	0 to 100	1	< 1 sec.

REFRIGERANT LEAK DETECTOR (RF Sensor)
Cooling agents	R134a, H2, R410a, R1234Ze
	FCKW, H7CKW, FKW, H7KW, HFO
	0 to 1,000 ppm	1 ppm	< 3 sec.

AIR QUALITY DETECTOR (HM Sensor)
Humidity	0 to 100 RH
Temperature	32 to 140°F
Ambient pressure	120 … 441 inH2O
Dew point	calculated out of Humidity and Temperature

INFRARED TEMPERATURE
IR Sensor	– 70 … + 380 °C	0.1 °C
	– 94 … + 716 °F	0.18 °F


OTHER SPECIFICATIONS
Operating time:	up to 20 hours continuous operation
Dimensions (housing):	5.31″ x 1.97″ x 0.98″ (L: 135 mm; W: 50 mm; D: 25 mm)
Dimensions (sensor neck):	Length: 9.84″ (250 mm)
Weight:	approx. 8 ounces (without sensor) (230g)
