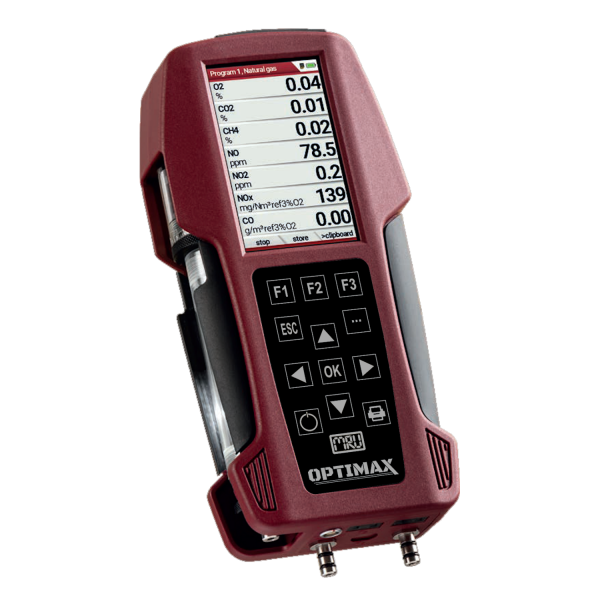

OPTIMAX Biogas – Portable Gas Analyzer – MRU Instruments

Description

	BIOGAS ANALYZER #410074US	BIOGAS ANALYZER #410074USC	BIOGAS ANALYZER #410074US2	BIOGAS ANALYZER #410074US2C	LANDFILL GAS ANALYZER #420075US2	LANDFILL GAS ANALYZER #420075US3	BIOGAS & ENGINE EXHAUST GAS ANALYZER #420076US1	BIOGAS & ENGINE EXHAUST GAS ANALYZER #420076US2
Bluetooth	✅	✅	✅	✅	❌	❌	✅	✅
O2 – Oxygen	✅	✅	✅	✅	✅	✅	✅	✅
CO2 – Carbon dioxide	✅	✅	✅	✅	✅	✅	✅	✅
CH4 – Methane	✅	✅	✅	✅	✅	✅	✅	✅
H2S – Hydrogen sulfide	✅	✅	❌	❌	✅	❌	✅	❌
CO – Carbon monoxide	❌	❌	❌	❌	❌	❌	✅	✅
NO – Nitric oxide	❌	❌	❌	❌	❌	❌	✅	✅
NO2 – Nitrogen Dioxide	❌	❌	❌	❌	❌	❌	✅	✅
Biogas pressure	✅	✅	✅	✅	✅	✅	✅	✅
Battery charger	✅	✅	✅	✅	✅	✅	✅	✅
16′ sampling line	✅	✅	✅	✅	✅	✅	✅	✅
Transport Case standard	❌	✅	❌	✅	❌	✅	✅	✅
Transport Case large	❌	❌	❌	❌	✅	❌	❌	❌
Shoulder strap for analyzer	❌	❌	❌	❌	✅	✅	✅	✅
AUX port	❌	❌	❌	❌	✅	❌	❌	❌
HC sniffer probe	❌	❌	❌	❌	✅	❌	❌	❌
HC sensor	❌	❌	❌	❌	✅	❌	❌	❌
Gas flow velocity measurement	❌	❌	❌	❌	✅	✅	❌	❌
US Landfill Gas Probe	❌	❌	❌	❌	✅	✅	❌	❌
Type K Thermocouple; Coiled cable, 6″ insertion	❌	❌	❌	❌	✅	✅	❌	❌
Auto data logging function	❌	❌	❌	❌	✅	❌	✅	✅
Spare part set	❌	❌	❌	❌	✅	✅	❌	❌
Special LFG Firmware	❌	❌	❌	❌	✅	✅	❌	❌
Combustion calculations	❌	❌	❌	❌	❌	❌	✅	✅
Combustion sampling line	❌	❌	❌	❌	❌	❌	✅	✅
Combustion gas probe	❌	❌	❌	❌	❌	❌	✅	✅

Features:

The most powerful handheld biogas analyzer
Ideally suited for landfills, digesters plus waste to energy engine tuning
Simple operation
Compact & Rugged
Easy Data Handling
Low ownership cost
NESHAP conform – CO monitoring in landfill gas wells

Benefits:

Make your biogas process more cost-effective.
Get the data to show your organization cares about the environment.

Applications:

Bio Gas / Landfill / CHP, Biogas / Landfill / CHP, CH4, CO, CO2 Measured, H2, H2S, NO, NO2, NOx, O2

Part Numbers:

410074US
410074USC
410074US2
410074US2C
420075US2
420075US3
420076US1
420076US2

Additional information

Weight	1.7 lbs

For Landfills and anaerobic digesters, the OPTIMAX measures methane, carbon dioxide, hydrogen sulfide, oxygen, plus pressure, flow and temperature. It can also be outfitted for the tuning of WTE engines, whether on biogas or natural gas to measure carbon monoxide and NOx.

Fast and easy to use intuitive menus and function buttons
Large, 4″ color back-lit display with ZOOM feature for viewing in any condition
Customizable screen settings
NEW – Condensate separator with Water Stop Filter
NEW – Internal flow monitoring with alarm function
NEW – WLAN interface
NEW – Available with 5,000 / 10,000 ppm H2S sensor
Durable and dirt resistant keypad
High energy Li-Ion battery provides up to 15 hours or operation
Large 32,000 measurements internal memory
Integrated SD card reader for additional data storage and easy data handling
Pressure, flow, and temperature measurements

Warranty – 3 Years on the analyzer and accessories

(2 years on O2 sensor – 1 year on other gas sensors)

Measuring components		Measuring method	Measuring range min./max.
CH4	Methane	NDIR	0 … 100%
CO2	Carbon dioxide	NDIR	0 … 100%
H2S / STD	Hydrogen sulfide	Electro-chemical	0 … 2,000 ppm / 5,000 ppm
H2S / LOW	Hydrogen sulfide	Electro-chemical	0 … 50 ppm / 200 ppm
H2S / HIGH	Hydrogen sulfide	Electro-chemical	0 … 5,000 ppm / 10,000 ppm
O2	Oxygen (Long Life)	Electro-chemical	0 … 25 %
H2	Hydrogen	Electro-chemical	0 … 1,000 ppm / 2,000 ppm
N2	Nitrogen	Calculated	0 … 100%
Hu	Calorific value	Calculated	0 … 36 MJ/m3
CO	Carbon monoxide	Electro-chemical	0 … 10,000 / 20,000 ppm
NO	Nitric monoxide	Electro-chemical	0 … 1,000 / 5,000 ppm
NO2	Nitric dioxide	Electro-chemical	0 … 200 / 1,000 ppm
NOx	NOx = NO + NO2	Calculated	0 … 5,000 ppm
Gas flow velocity		S-type probe	1 … 100 m/s
Flow rate		Calculated	0.1 … 6,000 m3/s
Differential temperature		NiCrNi	-40 … 2192 °F (-40 … +1,200 °C)
Differential pressure		Piezo	± 120”H2O (300 hPa)

GENERAL SPECIFICATIONS
Operation conditions	41°F …. 113°F (5 … 45°C) max. 95 % RH, none condensing
Storage conditions	4°F ….. 122°F (-20°C … 50°C)
Data storage	32,000 data sets
Interfaces	SD card reader, USB, IRDA, Bluetooth (Bluetooth is not available for LFG version)
Internal power supply	Lithium-Ion battery, 15 h operation time
Mains power supply	wall plug unit 100 … 240 Vac, 50 … 60 Hz, 5 V DC, 1.2 A

OPTIONAL SENSORS For use at flue gas emission measurements of cogeneration engines	QTY	Part No.	Price
Sensor OPTION – H2S – STD 0 – 2,000 ppm overload 5,000 ppm (*1)	1	10578	$982.00

OPTIONS & ACCESSORIES	QTY	Part No.	Price
Detector Probe with handle and 1,95 m cable (without sensor)* to be connected to AUX socket * OPTION AUX 63136 is needed *Please select one of the following sensors additionally:	1	11182	$0.00
AUX input for additional parameters	1	63136	$162.00
Sensor for CH4 leakage detection “HC400”	1	11138	$163.00
Sensor for CH4 and C3H8 leakage detection “HC401”	1	11591	$191.00
Sensor for C3H8 and H2 leakage detection “HC402”	1	11733	$226.00
Sensor for stack moisture test “RM400”	1	11191	$118.00
Sensor for Indoor climate sensor “HM400” (Humidity, Temperature, Atmospheric Pressure, Dew Point)	1	11922	$122.00
Sensor for Temperature (IR) “IR400” (contactless infrared)	1	12121	$203.00
Sensor for Refrigerants “RF400” (CFC, HFCS, HFO)	1	11190	$268.00
Sensor for CO measurement in ambient air	1	12130	$254.00
Sensor for CO2 measurement in ambient air	1	12623	$403.00
LED Lamp – LED 400	1	12698	$51.00
Gas flow velocity using PITOT Tubes – requires Pitot tube	1	12698	$51.00
Pressure reducing box (for high pressure site biogas sampling, e.g. Before CHP engines)	1	12738	$59.00
Active Vent Adapter incl. magnetic mounting – if AUX is already inslalled	1	13291	$670.00
Active Vent Adapter incl. magnetic mounting – with additional AUX port	1	13291AUX	$832.00

STORAGE AND TRANSPORTATION	QTY	Part No.	Price
ABS Transport case for AMPRO 2000_AMPRO plus and OPTIMAX / low profile	1	63319	$231.00
ABS Transport case with additional space for accessories	1	62931	$320.00
ABS Transport case for DM 9600	1	10583	$68.20
Soft transport bag (MRU Design), with shoulder strap	1	11507	$296.00
Soft transport bag (MRU Design), with shoulder strap	1	11507	$296.00
Soft transport bag with shoulder strap (for easy transport, e.g. when climbing up a chimney)	1	63729	$211.00
Arctic, unheated transport bag, suitable for low ambient temperatures from –15°C	1	63730	$350.00
Arctic, heated transport bag, battery operated (suitable for application areas up to –30°C) including gas sampling probe for industrial combustions #62741	1	64277	$1,662.00
Insulating jacket for probe and sampling line, “arctic transport bag”	1	63731	$217.00
Shoulder strap for Analyzer	1	63218	$86.00

BIOGAS probe – miniature combined gas sampling and straight Pitot tube	QTY	Part No.	Price
Special “S”-type straight Pitot tube, Ø12 x 250mm, incl. K-type thermocouple for flow velocity (volume) measurement	1	65673	$472.00
Special “S”-type straight Pitot tube, Ø12 x 250mm, incl. K-type thermocouple and integrated gas sampling line for simultaneous gas analysis and flow monitoring NOTE: useful at landfill sites biogas flow monitoring	1	65832	$552.00
Special “S”-type straight Pitot tube, Ø12 x 500mm, incl. K-type thermocouple and integrated gas sampling line for simultaneous gas analysis and flow monitoring	1	11462	$675.00
Stainless steel mounting fitting Ø12mm-1/2in male, with PTFE fixing ring	1	65670	$74.00

LFG Sampling Line	QTY	Part No.	Price
US Landfill Gas Probe with Type K t/c input	1	65832US	$283.00
Type K Thermocouple; Coiled cable, 6″ insertion with LFG fitting	1	12970	$182.00

INDUSTRIAL PROBE HANDLE – Additional probe tube needed (different lengths available) QTY Part No. Unit price Discount Total Price	QTY	Part No.	Price
Industrial Probe handle with 9 foot sampling line	1	62741	$350.00
Industrial Probe handle with 16 foot sampling line	1	62747	$405.00

EXCHANGEABLE PROBE TUBE FOR INDUSTRIAL PROBE HANDLE (Cone is included)	QTY	Part No.	Price
Exchangeable probe tube 12” x 0.3” Stainless Steel ≤ 1472°F	1	55583	$150.00
Exchangeable probe tube 20” x 0.3” (500 mm x 8 mm) High grade steel ≤ 1472°F (800°C)	1	59292	$377.00
Exchangeable probe tube 20” x 0.3” (500 mm x 8 mm) Inconel ≤ 2000°F (1100°C)	1	63927	$1,157.00
Heat deflector shield for high temperature radiation site (Ø6″ with Ø0.31″ hole for probe tube)	1	65481	$121.00

SOFTWARE OPTIONS / DOCUMENTATION	QTY	Part No.	Price
MRU4win – “full” version software, for real time data acquisition and handling on PC with Windows10	1	10539	$261.00
High speed easy paper loading IR printer (to be charged with analyzer charger)	1	63677	$373.00
Automatic measurement incl. data logging function, user-specific adjustable – Determination of average value, storing on SD card (csv format)	1	64158	$283.00

SOFTWARE OPTIONS / DOCUMENTATION

QTY

Part No.

Price

MRU4win – “full” version software, for real time data acquisition and handling on PC with Windows10

10539

$261.00

High speed easy paper loading IR printer (to be charged with analyzer charger)

63677

$373.00

Automatic measurement incl. data logging function, user-specific adjustable

– Determination of average value, storing on SD card (csv format)

64158

$283.00

CONSUMABLES	QTY	Part No.	Price
Service & cleaning set with WATER STOP FILTER	1	13885	$157.00
Spare part set (O-Rings, Filter, Condensate show glass) units with WATER STOP FILTER	1	63140USW	$114.00
Pleated filter for condensate separator (SMALL)	1	10156	$19.40
Pleated filter for condensate separator (LARGE)	1	10155	$20.20
Water stop filter with O-Ring for condensate seperator 13314	1	13346	$20.40
Condensate seperator WITH Water Stop Filter	1	13314	$123.00
Condensate seperator WITHOUT Water Stop Filter	1	62677	$85.80
Pre-Filter for high dust applications to be mounted after probe handle6	1	56356A	$35.00
Printer paper rolls (set of 5)	1	59465	$20.20

SAFETY OPTIONS	QTY	Part No.	Price
xFlame arrestor with 1/4”ID thread, to be mounted directly on biogas pipe at the sampling point or at sample gas inlet (client scope)	1	65427	$727.00
OPTIMAX LANDFILL GAS ANALYZER (SET) W I T H	QTY	Part No.	Price
O2 0…25% (long‐life electrochemical cell) CH4 0…100% (infrared dual gas bench) CO2 0…100% (infrared dual gas bench) H2S 0…2,000ppm (electrochemical cell) Biogas pressure 0…+/- 300 mBar (Biogas / duct pressure) AUX universal auxiliary port – connection for external gas sniffer #63136 HC “sniffer” for gas leakage detection with 1.5 meter cable and swan neck #11182 + #11138 • Gas Flow Velocity measurement using Pitot tube #65730 (Pitot tube is not included) US Landfill Gas Probe with K-Type t/c input #65832US Type K Thermocouple; Coiled cable, 6″ insertion #12970 Auto data logging function # 64158 Shoulder strap for analyzer #63218 Spare part set (O-Rings, Filter, Condensate show glass) #63140US ABS Transport case – with large compartment for accessories # 62931 INCLUDING standard configuration as described above and LFG Firmware!!	1	420075US2	$7,511.00
OPTIMAX LANDFILL GAS ANALYZER (SET) W I T H	QTY	Part No.	Price
O2 0…25% (long‐life electrochemical cell) CH4 0…100% (infrared dual gas bench) CO2 0…100% (infrared dual gas bench) H2S 0…2,000ppm (electrochemical cell) Biogas pressure 0…+/- 300 mBar (Biogas / duct pressure) US Landfill Gas Probe with K-Type t/c input #65832US Type K Thermocouple; Coiled cable, 6″ insertion #12970 Shoulder strap for analyzer #63218 Gas Flow Velocity measurement using Pitot tube #65730 (Pitot tube is not included) • Spare part set (O-Rings, Filter, Condensate show glass) #63140US ABS Transport case # 63319 INCLUDING standard configuration as described above and LFG Firmware!!	1	420075US2	$8,855.00
SAME AS ABOVE (# 420076US1) – BUT WITHOUT H2S measurement	1	420076US2	$7,958.00
