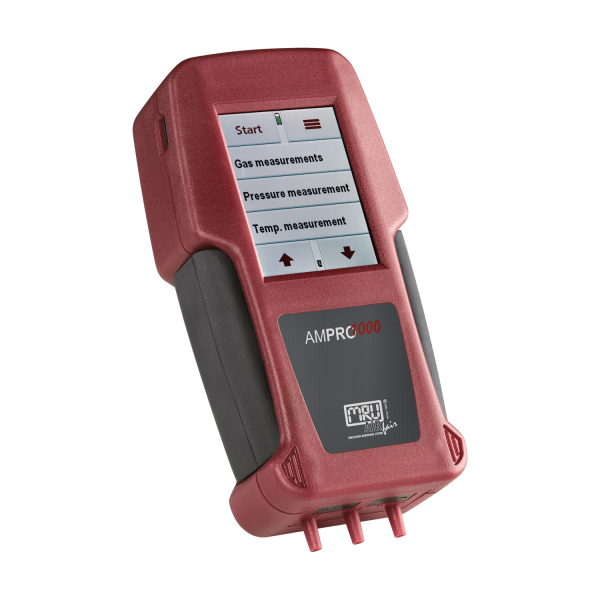

Low cost combustion analyzer
The ideal solution for residential combustion analysis
MEASURING:
O2, CO, NO
Combustion air temperature
Stack gas temperature
Stack draft
Differential temperature
Differential pressure
Low cost combustion analyzer
The ideal solution for residential combustion analysis
MEASURING:
O2, CO, NO
Combustion air temperature
Stack gas temperature
Stack draft
Differential temperature
Differential pressure
MEASURING:
O2, CO, NO
Combustion air temperature
Stack gas temperature
Stack draft
Differential temperature
Differential pressure
AND CALCULATES:
CO2
NOx
CO/CO2 ratio
Dew point
Excess air and air ratio (Lambda)
Combustion efficiency
Heat losses
Measurement component | Measuring range | Resolution | Accuracy | |
O2 | Oxygen (Long Life) | 0 … 21% | 0.1 % | ± 0.2 Vol-% abs. |
CO | Carbon monoxide (H2 Compensated) | 0 … 10,000 / 20,000 ppm * | 1 ppm | ± 10 ppm o 5 % of reading < 4,000 ppm / 10 % of reading > 4,000 ppm |
NO | Nitric oxide | 0 … 1,000 / 5,000 ppm * | 1 ppm | ± 5 ppm o 5 % of reading < 1,000 ppm / 10 % of reading > 1,000 ppm |
Other measured components | Measuring Range | Resolution | Accuracy |
Stack / Flue gas temperature | -40 … 2192 °F | 0.1 °F | ± 4 °F … < 200°C / 1 % of reading > 200°C |
Primary air / Ambient air temperature | 32 … 212 °F | 0.1 °F | ± 4 °F |
Differential temperature | -40 … 2192 °F | 0.1 °F | ± 4 °F … or 0.5% |
Stack draft | +/- 80 inH2O | 1 inH2O | ± 0.01 inH2O |
Differential pressure | +/- 80 inH2O | 1 inH2O | ± 0.01 inH2O |
Calculated values | Range | Calculated values | Range | Calculated values | Range |
Carbon dioxide | 0 … CO2 max. | Efficiency | 0 … 120 % | Excess Air | 0 … 99.9 |
Heat losses qA | 0 … 99.9 % | Air Ratio (Lambda) | 1 … 9.99 | CO/CO2 ratio | 0 … 10 |
GENERAL SPECIFICATIONS | |
Operation temperature | 41 °F … 113 °F |
Storage temperature | -4°F … 122°F |
Ambient conditions | 95% Rel. Humidity, non-condensing |
Data storage | 1,000 measurements, 1,000 sites |
Interfaces | Mini-USB, Micro-SD, IRDA, Bluetooth (data transfer to Smartphone, Tablet or PC) |
Internal Battery Pack | Lithium-Ion battery, 2250 mAh |
Grid power supply | 100 – 240 VCA / 50 … 60 Hz 500mA |
Protection class | IP30 |
Weight | Approximately 1.1 lbs. (with 2 sensors) |
Dimensions | (W x H x D) 3.23” x 6.65” x 1.73” |
Approvals | TUV-certified according to 1. BlmSchV and EN 50379-1 and 2 (Version B) or EN 50379-3 (Version E), ByRgG 309 |
