Description

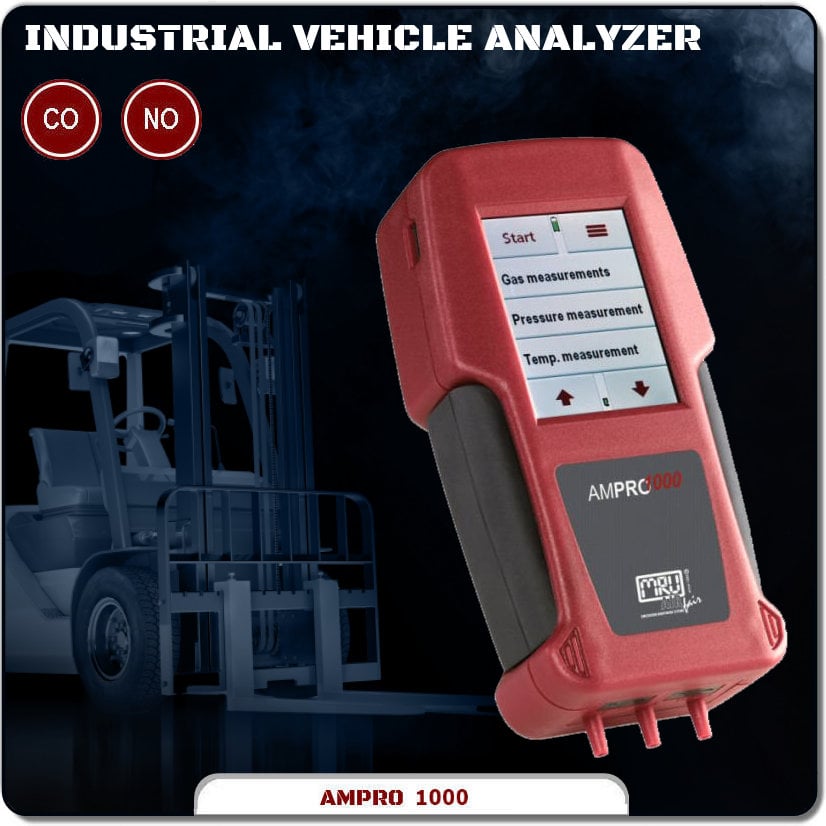

This inexpensive, very compact gas analyzer with its modern design is perfectly suitable for fast and reliable CO measurement on industrial trucks with LPG internal combustion engines.
MEASURING:
CO, and optional NOx
This inexpensive, very compact gas analyzer with its modern design is perfectly suitable for fast and reliable CO measurement on industrial trucks with LPG internal combustion engines.
For gas and diesel powered industrial trucks and vehicles in underground mining
CO measurement.
This inexpensive, very compact gas analyzer with its modern design is perfectly suitable for fast and reliable CO measurement on industrial trucks with LPG internal combustion engines.
MEASURING:
CO, and optional NOx
CO measurement
Measurement range for up t 2% – Optional 10%
Documentation via. printer, SD Card or USB

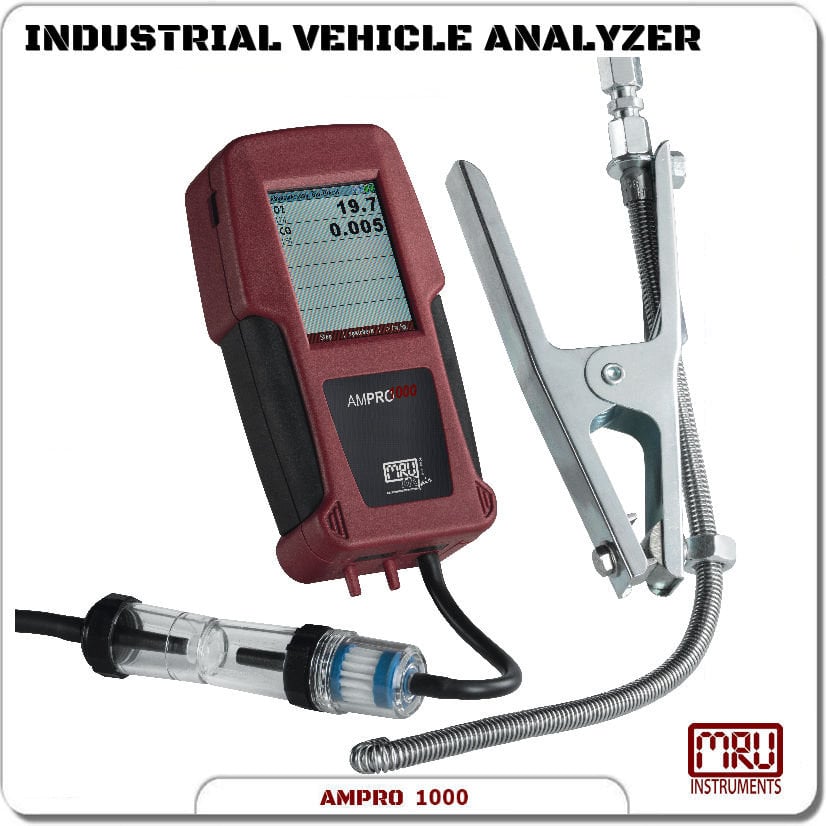

Including IVA probe and condensate separator
| Measurement value | Measurement range | Accuracy |
| CO Carbon monoxide | 0 … 1 % / 2 %* | 5 % of measured value |
| CO Carbon monoxide HIGH (OPTIONAL) | 0 … 4 % / 10 %* | ± 0.02 % / 5 % of measured value |
| NO Nitric oxide (OPTIONAL) | 0 … 1,000 ppm / 5,000 ppm* | 5 % of measured value |
| General technical data | |
| Display | 2.8“ TFT Touch screen |
| Extraction probe | Flexible probe tube with clamp and 7.38-foot sampling line |
| Interfaces | Mini-USB, SD-Card, IRDA |
| Data storage | 1,000 measurements internal |
| Dimensions | (W x H x D) 3.23” x 6.65” x 1.73” (82 x 169 x 44 mm) |
| Weight | ± 14 ounces (ca. 390 g) |
