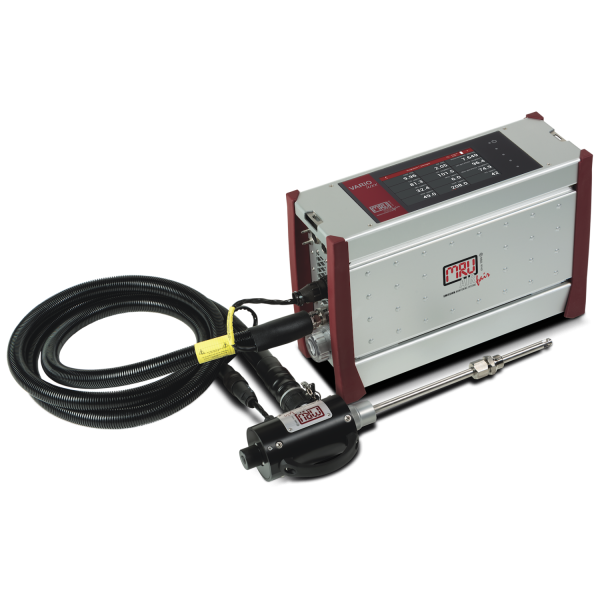

VARIO Luxx - Portable Emission Analyzer - MRU Instruments

Description

Features:

Precise measuring technique by means of infrared (3-gas) and electrochemical cells (6-gas)
Most suitable for precise low NOx measurements and other toxic gas emissions measurement according to new MCP Directive 2015/2193 for medium combustion plants with rated power <50 MW
All important interfaces are available, such as Ethernet (LAN), WLAN, Bluetooth, USB, RS485, 8 channel analog Outputs
Remote wireless Control using a smartphone and MRU4u app

Benefits:

Make your combustion process more cost-effective.
Get the data to show your organization cares about the environment.

Applications:

C3H8, Cement Industry, CH4, CO, CO2 Measured, Combustion Portable, CxHy, Gas Turbines / Compressor, Glass Industry, H2, H2S, NO, NO2, NOx, O2, Power Plants, Refineries / Petrochem, simple, SO2, Universities / Laboratory

Integrated, efficient electrical gas cooler (Peltier cooler) with automatic condensate draining pump
Automatic zeroing by means of 3-way solenoid valve, internal sample flow volume measurement
Strong, regulated sample gas pump and easy replaceable, effective PTFE filter

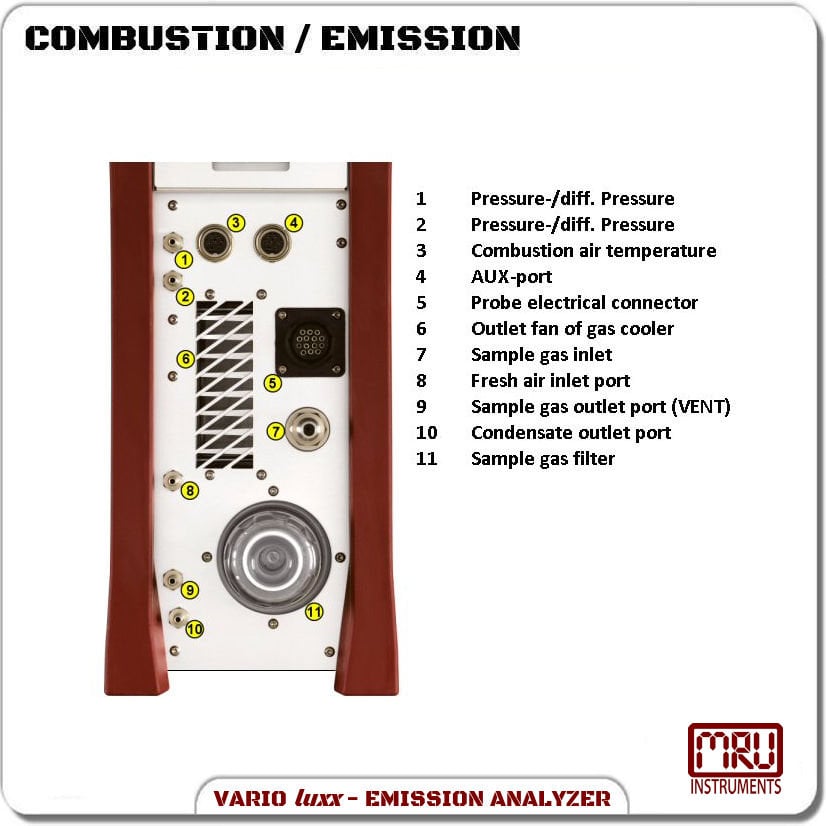

Zero gas (ambient air) inlet nozzle and separate passive VENT outlet nozzle for sample gas
O2 measurement included, using long-life electrochemical cell
Stack gas temperature measurement up to 2,192°F (optional up to 3,092°F)
Differential pressure or stack gas pressure +/- 100 hPa (40 inH2O)
Combustion air temperature up to 932°F, using adequate NiCrNi probes
Automatic measurement incl. data logging function
Large fuel type list
Complete combustion calculation using country specific fuel type list
O2 referencing (normalization) to user settable value
Automatic internal test and control of soft- and hardware functions

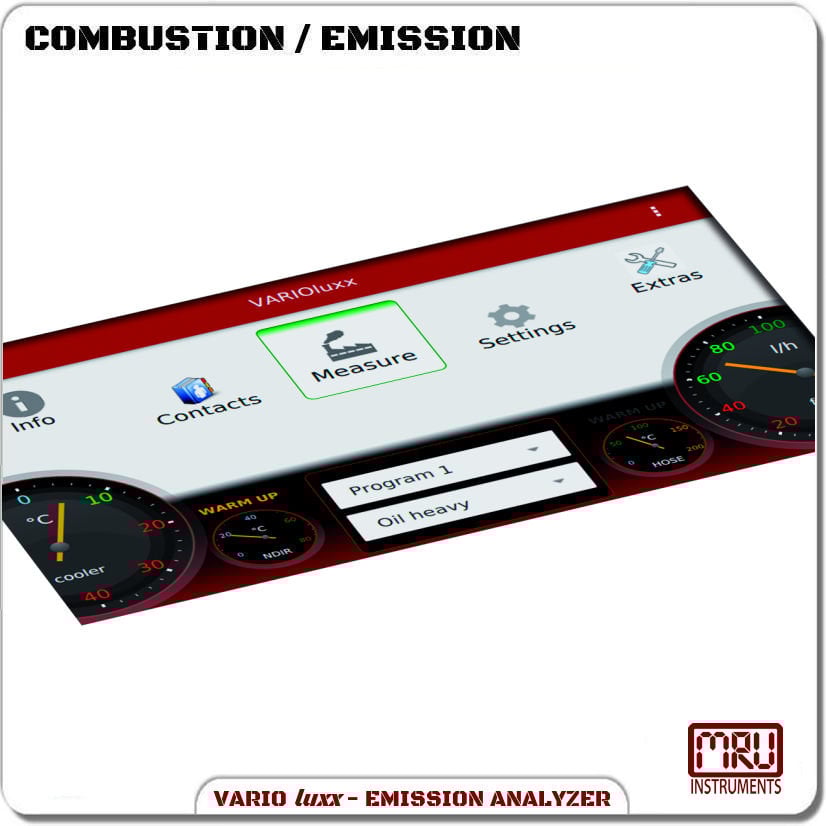

Linux OS & large, high-contrast and backlit 7″ (840×480) graphical display
Display with easy, intuitive touch panel and all measured data at one sight
Graphical data visualization, csv or pdf reporting file

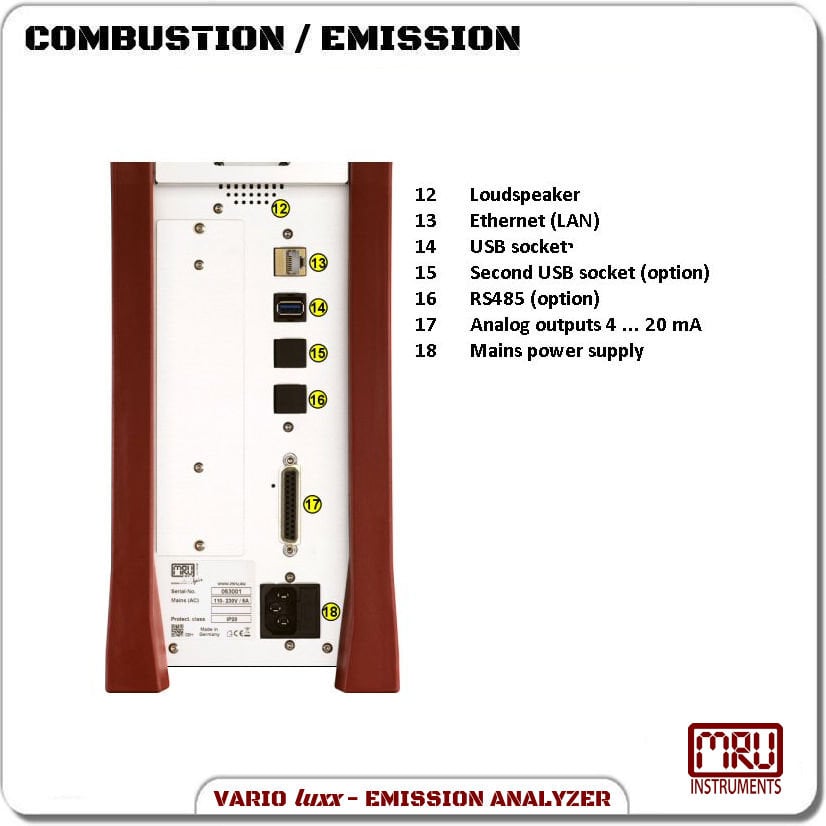

Data transfer to PC over LAN Ethernet (RJ45 socket) or USB
8 channel analog output 4-20mA and 4 channel analog input 4-20mA
Universal analogue input (AUX socket) with 0-10 V or 4-20 mA signal or K-thermocouple or RS485
10.000 data of internal data storage and large data storage on external 4GB USB-stick (MRU design)
Universal power supply: mains 90-264 Vac/ 105 W (up to 600W with 16 foot heated sampling line)
1 hour Li-Ion 48 Wh battery stand-by operation, with power supply for gas cooler and heated probe filter
Modern, rugged aluminum enclosure with rubber molded impact protection

Measuring ranges

O2	(electrochemical) 0 … 25.00 %
CO low	(electrochemical) 0 … 500.0 ppm
CO (H2 compensated)	(electrochemical) 0 … 10,000 ppm / overload up to 20,000 ppm
CO very high	(electrochemical) 0 … 2.00 % / overload up to 10.00 %
CO	(infrared) 0 … 3,000 ppm / overload up to 30,000 ppm
CO	(infrared) 0 … 1.00 % / overload up to 10.00 %
CO2	(infrared) 0 … 5.00 % / overload up to 40.00 %
HC (CH4)	(infrared) 0 … 3,000 / overload up to 10,000 ppm
HC (C3H8)	(infrared) 0 … 1,000 ppm / overload up to 10,000 ppm
HC (CH4)	(infrared) 0 … 1.00 % / overload up to 4.00 %
NO low	(electrochemical) 0 … 300.0 ppm
NO	(electrochemical) 0 … 1,000 ppm / overload up to 5,000 ppm
NO2 low	(electrochemical) 0 … 100.0 %
NO2	(electrochemical) 0 … 200 ppm / overload up to 1,000 ppm
SO2 low	(electrochemical) 0 … 100.0 ppm
SO2	(electrochemical) 0 … 2,000 ppm / overload up to 5,000 ppm
H2S low	(electrochemical) 0…50 ppm / overload up to 500 ppm
H2S	(electrochemical) 0 … 2,000 ppm / overload up to 5,000 ppm
H2	(electrochemical) 0 … 1,000 ppm / overload up to 2,000 ppm
Fluegas temperature	32 … 2,192 °F
Combustion air temperature	32 … 932 °F
Ambient air temperature	32 .. 212 °F
Differential pressure	-120 … + 120 hPa (-48 …. + 48 inH2O)
Flow measurement	3 … 100 m/s

Dimension and other data

Operating system	LINUX
Display	7“ TFT (800 x 480 px) color display, backlit, with touch operation
Data storage	10.000 data sets internal and external USB-Stick
Interfaces	Ethernet, Bluetooth, WLAN, RS485
Operating temperature	41 … 113 °F ; RH up to 95 % not condensing
Storage temperature	-4 … 122 °F
Internal power supply	Li-Ion , 48 Wh, for appr. 1 hr „stand-by“ (optional additional battery, 48 Wh Li-Ion)
External power supply	86 … 265 Vac / 47 … 63 Hz / 105 W (up to 600 W with heated sampling line)
Protection	IP20 (or IP42 inside transport case)
Dimensions	(W x H x D) 16.92” x 11.41” x 5.90” (430 x 290 x 150 mm)
Weight	appr. 16.5 lbs. (7,5 kg) (with minimal configuration)
