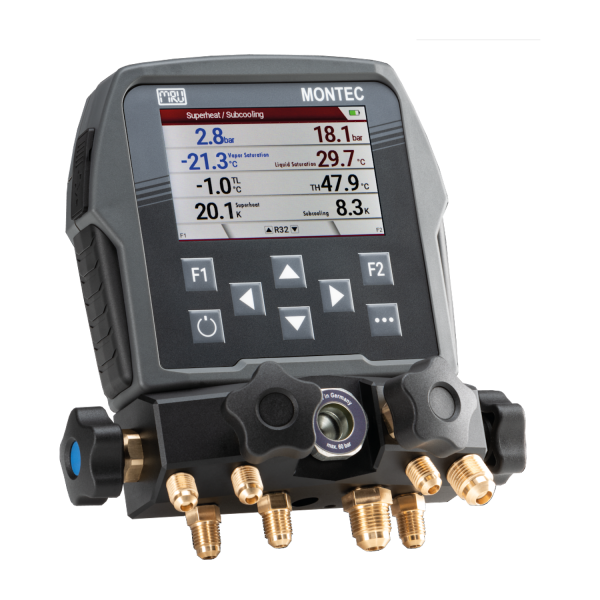

MONTEC - DIGITAL MANIFOLD GAUGE - MRU Instruments

Description

WLP 160m – CO2 High Pressure model

WLP 50 – Standard model

Integrated, robust vacuum sensor
Compatible with all refrigerants, including A3, such as propane R290 and CO2
Powerful battery for extended measurement operation
Bluetooth accessories (temperature clamp, external pressure sensor)
App for device and accessory control, software updates, and measurement logs

Digital Gas Manometer: What It Is, How It Works, and… What Is a Digital Gas Manometer? A digital gas manometer…
How to Use a Digital Manometer for Gas Pressure Testing A digital manometer is a useful instrument for measuring pressure…
Terms and Conditions PDF VERSION By accessing or using the website located at…
Manuals View/Download Manual for Your MRU Instruments Product AMPROplus62876ES_MANUAL2 DE…
Manuals View/Download Manual for Your MRU Instruments Product AMPROplus 62876ES_MANUAL2 DE…
Independence Day Promotion Independence Day Event — Claim a Free Service with Code:…

– Integrated, robust vacuum sensor

– Large 4″ IPS TFT graphic display for optimal viewing angle

– Industrial keypad, suitable for glove operation

– Exceptionally robust, fiberglass-reinforced housing with IP54 protection

– Very large data storage for numerous measurements

– Explicit approval for use with A3 refrigerant

– Real glass sight glass

– Additional connection for 2 x temperature clamps with Type K connection

– Convenient folding hook for mounting

– Option to mount an anti-theft device

– Suitable for applications up to 50 bar or, as a CO2 version, up to 160 bar (2320 psi)

– USB-C port including charging cable and power supply

– Bluetooth

Measured values WLP 50	Measuring ranges	Accuracy
Temperature measurement T1/ T2	–40 … 1,830 °F with thermo couple Typ K	±2° F or 0.5 % reading*
Pressure (either)	14.5 … 725 psi (1.00 … 50.00 bar)	±0.5 % reading* + 0.1 bar
Vacuum	0 … 10.44 inH2O (0 … 26.00 mbar)	±10 % reading* + 0.010 mbar

Measured values WLP 160m	Measuring ranges	Accuracy
Temperature measurement T1/ T2	–40 … 1,830 °F with thermo couple Typ K	±2° F or 0.5 % reading*
Pressure	14.5 … 2320 psi (1.00 … 160.00 bar)	±0.8 % reading* + 0.4 bar
Vacuum	0 … 10.44 inH2O (0 … 26.00 mbar)	±10 % reading* + 0.010 mbar

Pressure transmitter	Measuring range	Accuracy	Connections	Service life	Dimensions	Weight
WLP 50	0 … 725 psi	± 4.3 psi / 2 %	SAE 1/4″ male	160 h	1.5” x 7.6” x 1.42”	10 ounces
WLP 50	0 … 50 bar	± 0.3 bar / 2 %	SAE 1/4″ male	160 h	38 x 193 x 36 mm	0.28 kg

Pressure transmitter

Measuring range

Accuracy

Connections

Service life

Dimensions

Weight

WLP160

0 … 2320 psi

± 4.3 psi / 2 %

SAE 1/4″ male

160 h

1.5” x 7.6” x 1.42”

10 ounces

0 … 160 bar

± 0.3 bar / 2 %

SAE 1/4″ male

160 h

38 x 193 x 36 mm

0.28 kg

Temperature clamp

Measuring range

Accuracy

Connections

Service life

Dimensions

Weight

WLT

104 … 302° F

± 4°F/0.5 %

2 x Typ K

160 h

1.5” x 5.7” x 3.54”

6 ounces

40 … +150° C

± 2°C/0.5 %

2 x Typ K

160 h

38 x 145 x 90 mm

0.17 kg

Refrigerant scale

Measuring range

Accuracy

Power supply

Enclosure

Dimensions

Weight

Scale

0 … 220 lbs.

±(0.05 % V. MW + 10 g)

5 x 1.5 V AA for 80 h

Aluminum

11” x 2.95” x 11”

7 lbs.

0 … 100 kg

±(0.05 % V. MW + 10 g)

5 x 1.5 V AA for 80 h

Aluminum

280 x 75 x 280 mm

3.17 kg

General technical data
Operating temperature	-4 … 122° F (–20 … +50 °C), max. 95 % RF, non condensing
Storing temperature	-4 … 122° F (–20 … +50 °C)
Data memory	256 MB
Interfaces	USB.C, Bluetooth™, (Data transfer to Smartphone, Tablet or PC)
Internal power supply	Lithium-Ion, >20 h (100 % brightness), up to 40 h at 50 %, up to 150 h at display off
External power supply	Charger 100 … 240 V AC / 5 V DC, 1,200 mA
Connections	Valve block: 7 mm, Port SAE 3/8″: 7 mm, Port SAE 1/4″: 5 mm
Weight	appr. 3.9 lbs. (1.75 kg)
Dimensions	(W x H x D) 7.5” x 8.2” x 3.5” (190 x 208 x 89 mm)
Enclosure	PA6GF30, IP 54
Refrigerants	R12, R22, R32, R134a, R290, R404a, R407c, R407f, R410a, R417a, R448a, R449a, R452a, R502, R507, R513a, R600a, CO2
